Salaryman Kintaro — card-reader assembly manual
Original cabinet-manual photographs identify the ME-LM2 reader, its assembly and replacement parts.
Source
Photographs from the Salaryman Kintaro NET@SELECT cabinet manual. Section 1-12 カードリーダー ASSY (“Card reader assembly”) appears on page 24. The edition and publication date are unknown.
The parts list identifies item 5 as カードリーダー ME-LM2 (“Card reader ME-LM2”), part 5900-3700, quantity 1. The manufacturer is not listed. See AW cards and readers.
Photographs and English reading copy
Photo metadata has been removed. The English annotations are an AI-assisted translation added in 2026.

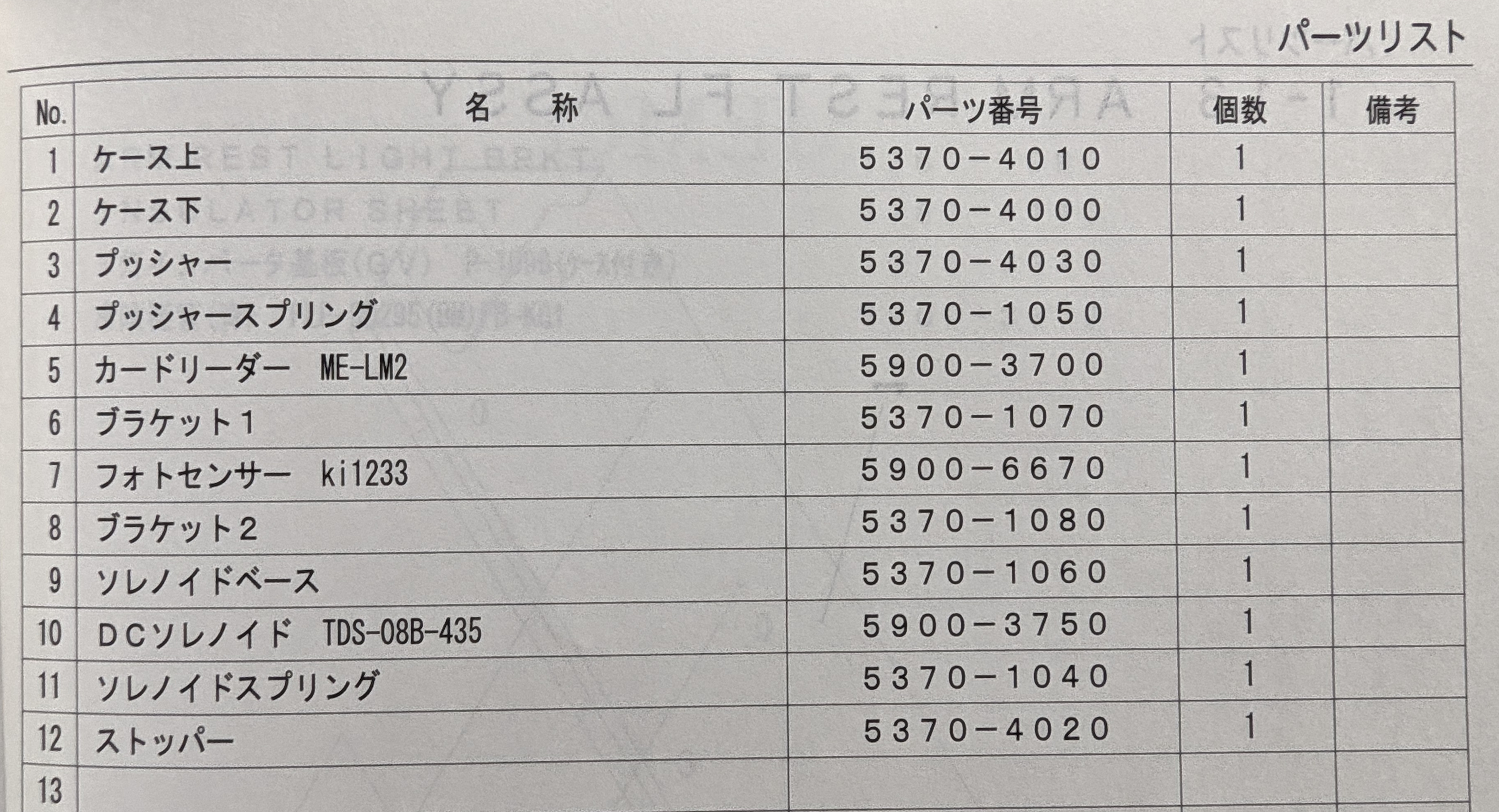

Parts list — original photograph3630 × 1967

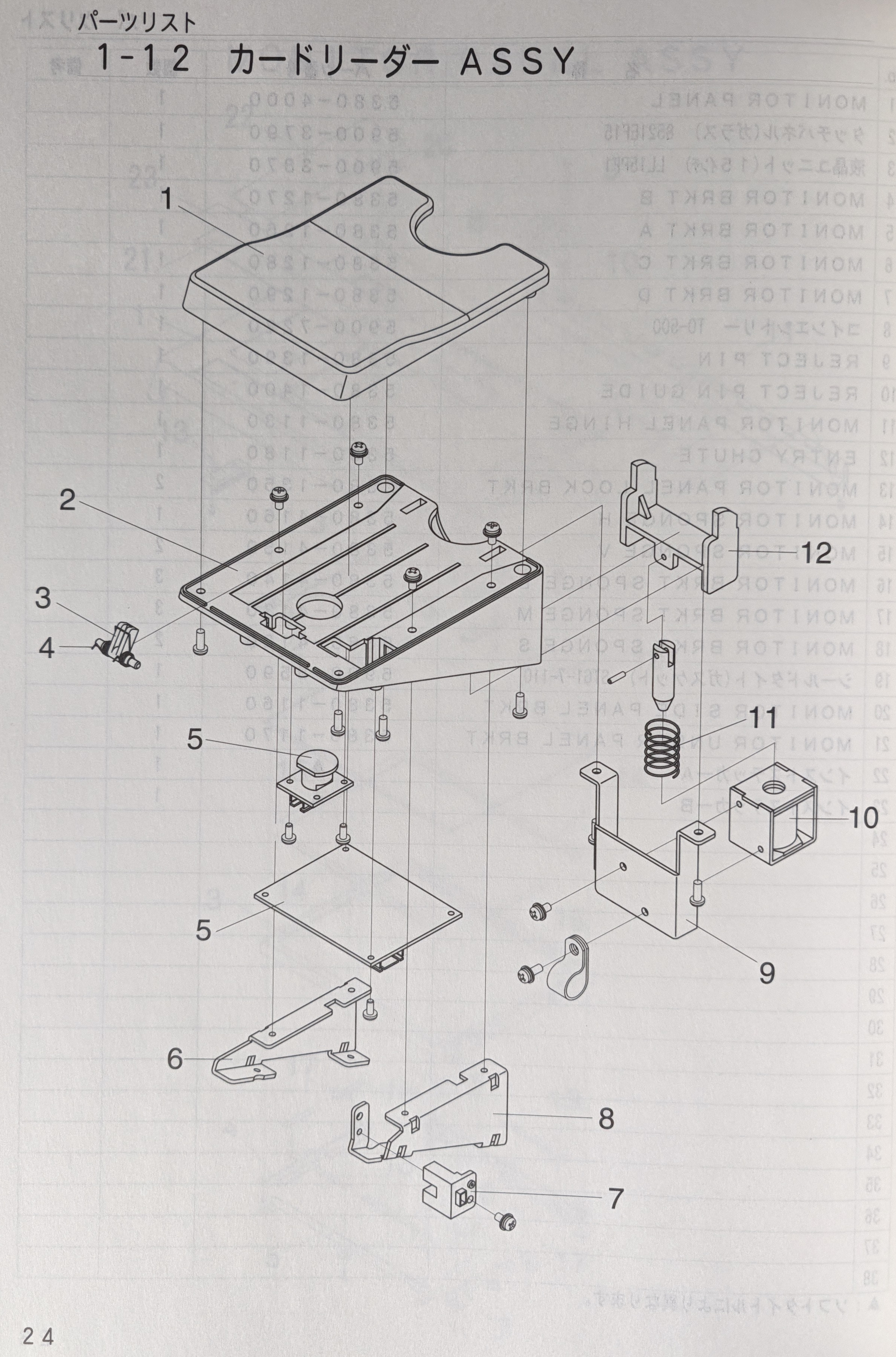

Card-reader assembly — page 242396 × 3628

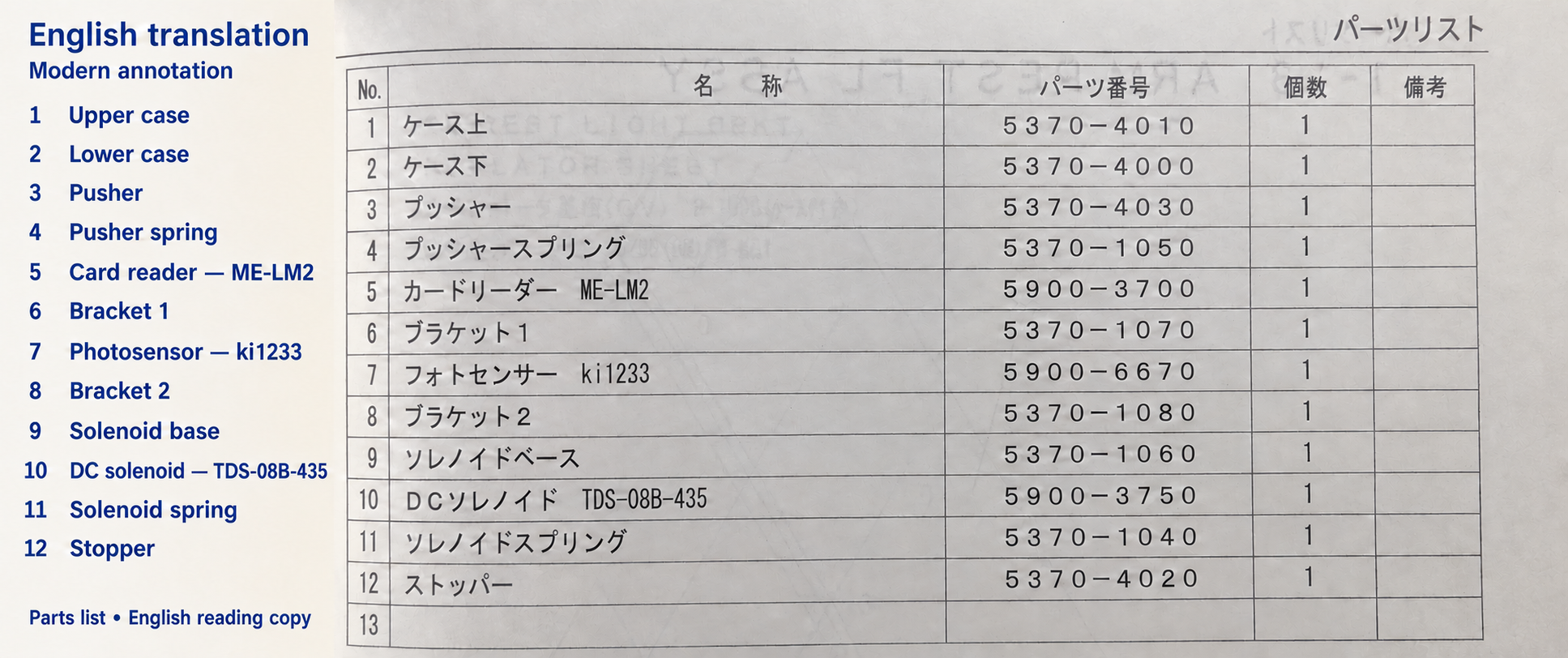

Parts list — English reading copy1935 × 812
Parts list: transcription and translation
| No. | Japanese name | English translation | Part number | Qty. |
|---|---|---|---|---|
| 1 | ケース上 | Upper case | 5370-4010 | 1 |
| 2 | ケース下 | Lower case | 5370-4000 | 1 |
| 3 | プッシャー | Pusher | 5370-4030 | 1 |
| 4 | プッシャースプリング | Pusher spring | 5370-1050 | 1 |
| 5 | カードリーダー ME-LM2 | Card reader — ME-LM2 | 5900-3700 | 1 |
| 6 | ブラケット1 | Bracket 1 | 5370-1070 | 1 |
| 7 | フォトセンサー ki1233 | Photosensor — ki1233 | 5900-6670 | 1 |
| 8 | ブラケット2 | Bracket 2 | 5370-1080 | 1 |
| 9 | ソレノイドベース | Solenoid base | 5370-1060 | 1 |
| 10 | DCソレノイド TDS-08B-435 | DC solenoid — TDS-08B-435 | 5900-3750 | 1 |
| 11 | ソレノイドスプリング | Solenoid spring | 5370-1040 | 1 |
| 12 | ストッパー | Stopper | 5370-4020 | 1 |
Callout 5 covers the ME-LM2 reader components. “Upper case” and “lower case” are the two housing pieces.
